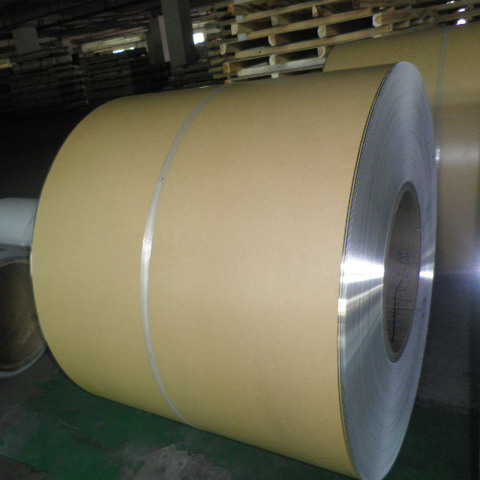

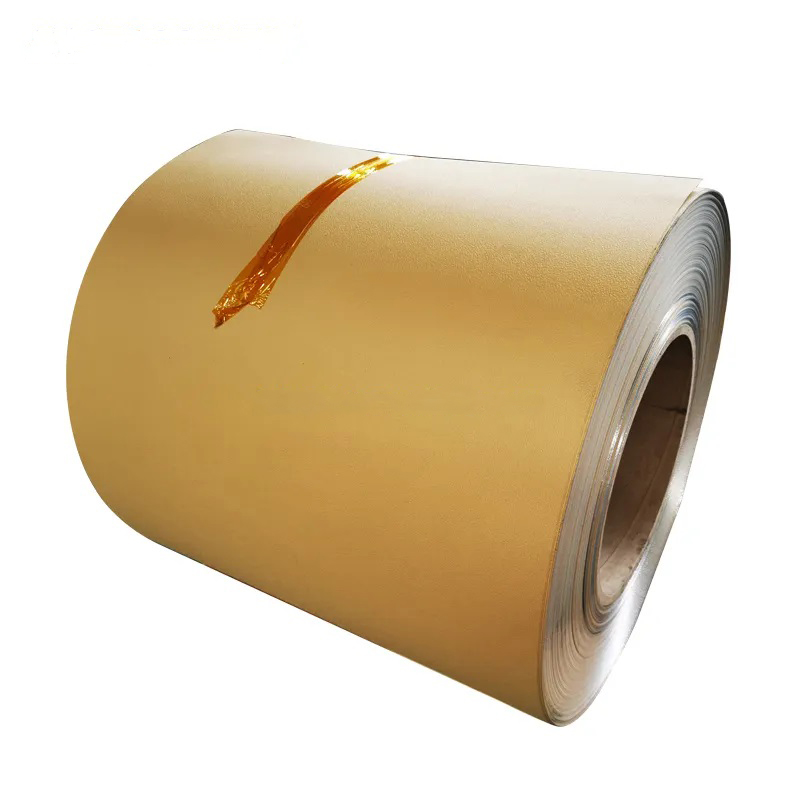

Polykraft Laminated Aluminum Coil

Polykraft paper: 166/m2

Color: khaki

Bursting strength: 600Kpa

Peeling off: not easy to be off

Application: Insulation and anti-corrosive projects

MOQ: 1 Ton

Delivery Terms: FOB, CFR, CIF

Send Inquiry Send Email

Related Products
Related Blogs
Related Applications
Related Videos

HENAN HC ALUMINUM CO., LTD

Tel: +86-371-58525958

Email: sales@aluhc.com

Website: https://www.aluhc.com

OFFICE ADDRESS: 1107, Lujin Building, CBD, ZHENGHZOU, HENAN CHINA
CONTACT: MR. MA
CELL/Whatsapp: 008618137889531

Product Introduction

Aluminum coil with polycraft paper is very popular in recent years. Why is there a layer of kraft paper on the surface of aluminum coil? The anticorrosive performance of the aluminum coil itself is superior, and the service life of the aluminum coil is greatly enhanced after being laminated with a layer of kraft paper. Another aluminum jacketing coil is polysurlyn laminated aluminum coil.

Specification of Aluminum Jacket with Polycraft

Grade: 1006, 1100, 3003, 3105, 5005

Temper: O, H12, H14, H16, H24, etc.

Common use: 3003 H14 H16, 1100 H14 H16, 5005 H14

Type: Coil roll

Application: Industrial insulation jacketing, cover, insulation protective jacketing

Thickness: 0.3-1.5mm

Width: 914mm, 1000mm, 1219mm

Length: 20, 25,30, 60, 90m per roll or as per clients

Surface Treatment: Plain, Flat, mill finish, Embossed

Moisture barrier: poly craft paper, kraft paper

Kraft-paper: 166g/m2

Color: khaki

Certificate: ISO9001, GB/T3880, ASTM B209

Packaging: packed in carton or coil in wooden pallet

Delivery time: 25-45 days

Minimum order quantity: 2 tons

Mechanical Properties of Aluminum Coil with Polycraft

Temper

Rp0.2 min

(N/mm2

)

Rm min

(N/mm2

)

Rm max

(N/mm2

)

A50 min

(%)

A50

(%)

Hx4

117

138

180

Thickness depend

Hx6

144

165

206

Rp0.2 : Proof Stress 0.2% in N/mm2

Rm : Ultimate Tensile Strength in N/mm2

A50 : Elongation A50 in %

Technical Parameters of Aluminum Coil with Kraft Paper

Item		Standards	Testing Method	Result
Appearance		No holes, no wrinkles, no moisture and damage and smooth surface	Visual observation	OK
Weight(g/m²)		175-195	Electronic balance	181
Thickness(mm)		0.25±0.03	Thickness meter	0.251
Tensile strength （N/10mm)	Horizontal	≥40	Tensile testing machine	52
	Longitudinal	≥80		150
Breaking resistance		≥600kPa	burst tester	860kPa
The degree of peeling		Not easy to peel

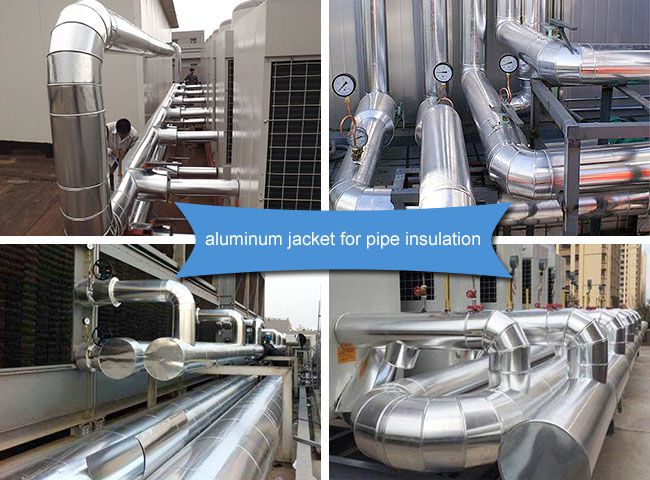

Application of Aluminum with Polykraft Moisture Barrier

Aluminum metal Jacket with polykraft moisture barrier has a certain adsorption effect on the moisture inside the pipeline, which is mainly used for insulation and anti-corrosive projects. Our aluminum coil with kraft paper has been exported to many countries, especially Middle East countries.

We have comprehensive range of thickness and length. It can be cut into different lengths according to your requirements, such as 20 meters, 30 meters, 50 meters,etc., saving your time in engineering.
