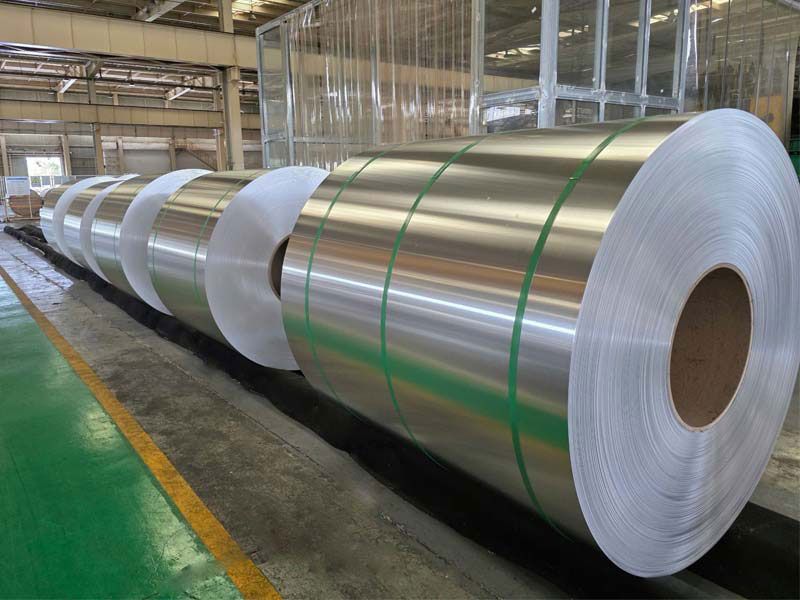

5052 Aluminum Coil

5052 aluminum coil has good corrosion resistance, good weldability, good cold workability, moderate strength, high anti-fatigue strength and plasticity.

5052 aluminum coil is a typical Al-Mg antirust alloy, which the most commonly used 5052-h32 aluminum coil is the 5052 aluminum coil that is processed and hardened, as well as then subjected to low temperature treatment or heat to obtain stable mechanical properties. At this time, 5052 aluminium coil under h32 temper showing high plasticity, good weldability, and being able to be polished,etc.

So, the 5052 aluminum coil with the above properties is mainly used for static load parts working in liquid or gas media, such as truck air brake tanks / fuel tanks, large marine diesel tanks, gasoline or lubricating oil conduits, various liquid containers and parts for various Marine and land transportation equipment, as well as electrical shells, cold stamping parts, sheet metal products, etc.

Specification of aluminum coil 5052:

Application of 5052 Aluminum Coil:

5052 aluminum coil can be applied to oil tanks or tubes on aircrafts, stamping parts on vehicles or ships, instruments, street lamp holders, rivets, hardware, electrical casings, etc;

5052 aluminum coils are also suitable for oil tanks or tubes on aircrafts, aluminum alloy materials for aerospace and so on.

Performance of 5052 aluminium coil:

1.The tensile strength is σb (MPa) 173 ～ 244, and the conditional yield strength is σ0.2 (MPa) ≥70.

2.Good mechanical performance, high anti-blasting performance, good puncture and tear resistance.

3.Clean oil removal, less pinholes, good product plate shape, cutting without deformation, good anti-rust effect and other advantages.

4.Good corrosion resistance, excellent weldability, good cold workability, and medium strength.

5.Light weight and recyclable, it is the best choice for environmentally friendly tableware.

Packing & Transportation Details:

1) Interleave paper between each sheet. (Optional for Cold Rolled Sheet).

2) Plate/coil is placed to the iron or wooden pallet, wrapped by water-proof craft paper and fixed by iron belt.

3) Port: Qingdao port or other main ports in China

4) Container: 20ft GP:5898mm (Length)x2352mm (Width)x2393mm (Height), loading 18~25 tons.

40ft GP:12032mm (Length)x2352mm (Width)x2393mm (Height), loading 20~28 tons.
